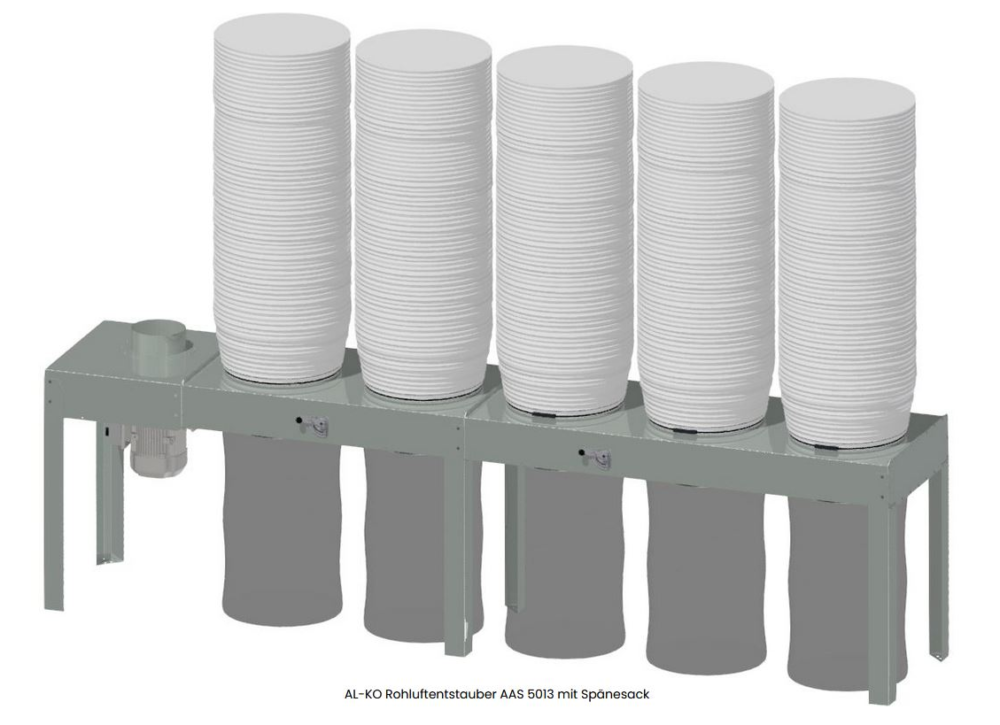

Dust Extraction Unit AAS 5013 – Stationary Extraction Unit for Versatile Applications
Optimize your workspace with the AAS 5013 Raw Air Dust Extractor, a stationary extraction unit designed for effective removal of dust and chips. The AAS 5013 is suitable for a variety of materials, including plastics, metals, glass, Styrofoam, paper, and wood in hobby environments. Its modular design with an overpressure filter and a fan positioned on the raw air side ensures efficient and safe operation.
High Suction Power
Advanced Filtration System
Large Collection Capacity
Reliable and Efficient Dust Collection Solution
The AAS 5013 combines reliability and efficiency to ensure a clean working environment. Built with a galvanized, all-metal housing for durability and corrosion resistance, this extractor comes with pre-assembled components for fast setup and easy maintenance, keeping downtime to a minimum.
Key Features:
Powerful Motor:
The 5.5 kW motor provides the high suction performance needed for demanding industrial applications.
Enhanced Filtration System:
Five large filter areas ensure efficient particle separation and optimal airflow, maintaining cleaner air quality.
User-Friendly Design:
Pre-assembled filter and chip bags, along with an integrated switch, reduce assembly time and simplify maintenance.
Applications:
Perfect for:
- Plastic Processing: Efficiently captures plastic dust and particulates from various production processes.
- Metalworking: Controls metal dust, ensuring clean air in production environments.
- Glass and Styrofoam Processing: Effectively extracts both light and heavy particles for a safer workspace.
- Paper and Packaging Industries: Keeps work areas free from paper dust and debris.
- Hobby Workshops: Ideal for diverse tasks where reliable dust extraction is essential.
Technical Specifications:
Suction Connection:
250 mm
Motor Power:
5.5 kW / 3 Ph
Voltage:
400 V/50 Hz
Nominal Volume Flow:
4,500 m³/h
Max Volume Flow:
5,300 m³/h
Suction Pressure:
2,900 Pa
Filter Area:
5 x 3.5 m²
Filter Cleaning:
Manual
Filter Material:
Category L
Chip Collection Volume:
5 x 175 L

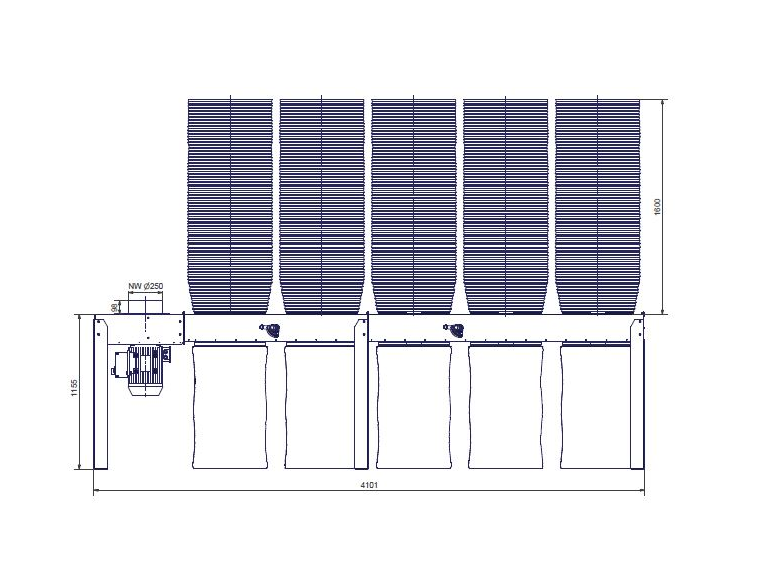

Dimensions (L x W x H):
4,101 × 787 × 2,754 mm
Weight:
207 kg
Color:
RAL 7035 (Light Gray)
Discover how the AAS 5013 can enhance your workspace with reliable dust extraction for maximum efficiency and safety. Check out our blog post to learn more about the Dust Extraction Units.
