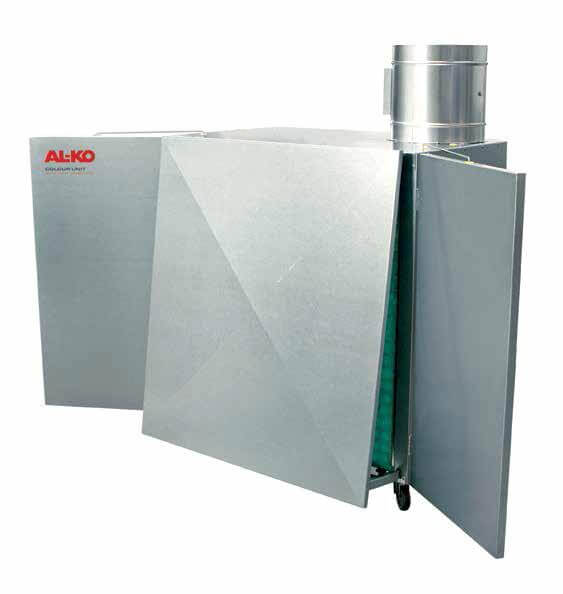

Mobile paint mist extraction
COLOR JET 2
Characteristics
- Mobile design
- High degree of separation, high suction performance
- Easy to handle
- Long filter life, therefore little downtime
- More flexible thanks to extraction technology with a front panel system
- Certified for ATEX Zone 2
Your advantages
- Clean and safe painting workstations thanks to high suction performance and an effective filter system
- Can be used flexibly thanks to the mobile design
- Cost-effective and powerful, in many cases replaces a closed paint booth
- Safety through certification for use in potentially explosive environments (ATEX Zone 2)
- Individually adaptable thanks to extensive accessories
Technical data:
- Motor data – 0.75/2.1kW kW ex/400 V / 50 Hz
- Speed - 960/1430 min ⁻ ¹
- Air volume – 3,000/1,430 m³/h
- Usable pressure – 400/500 Pa
- Dimensions (W/H/D) – 1,012 x 1,405 x 943 mm
- with unfolded side panels – 1,897 x .1405 x 1,177 mm
- Filter area – 1 m²
- Sound pressure level – 67.5 dB(A)
- Weight – 176 kg
Applications
- Wet painting workstations in trade, industry and workshops
- Painting workstations with ATEX zone 2
1: | Max. volume flow in m³/h: 6,800 |
2: | Engine power in kW: 2.1 |
3: | Filter area in m²: 1 |
4: | Dimensions (WxDxH) in mm: 1897x1405x1177 |
